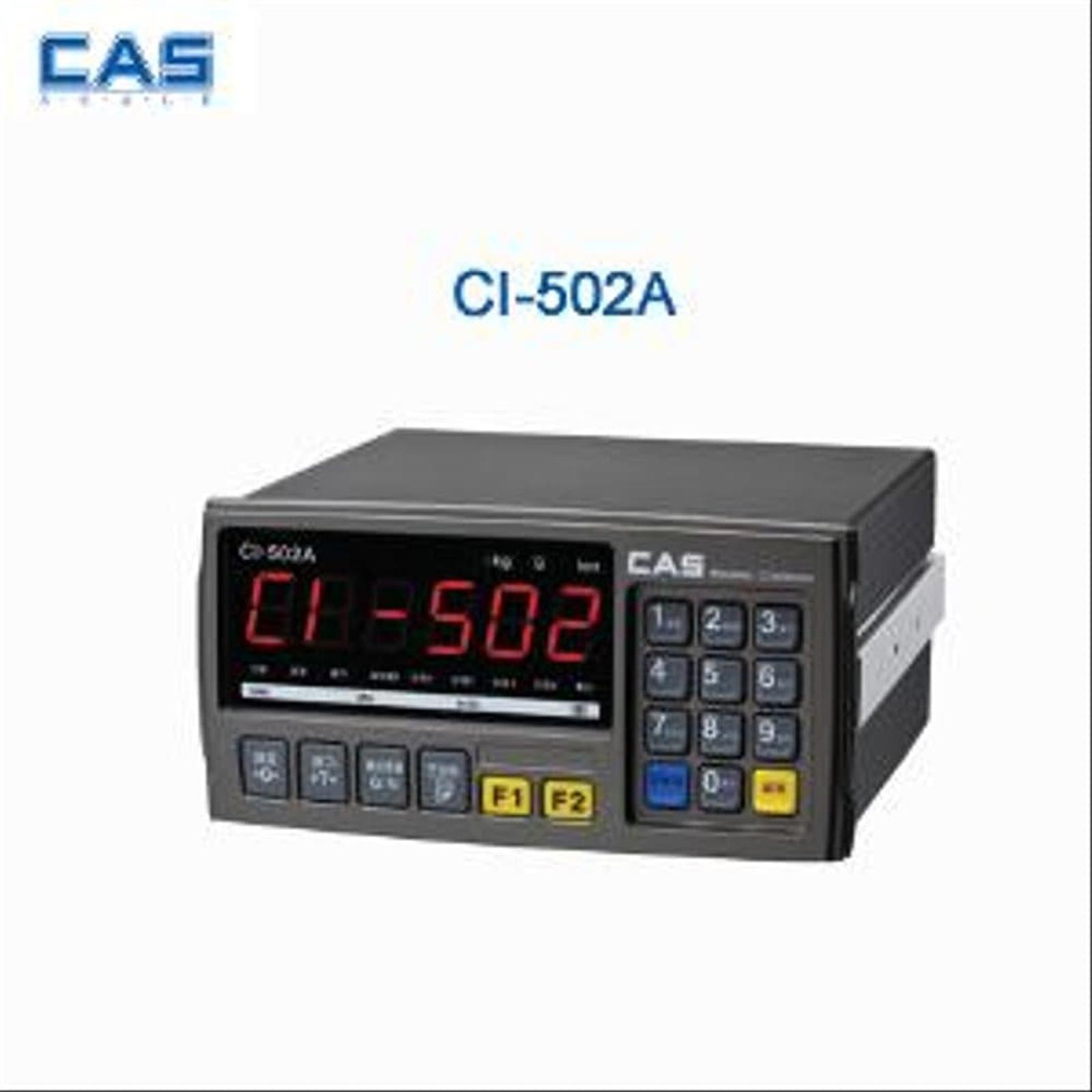

INDICATOR TIMBANGAN MERK CAS TYPE CI 502A

FEATURES :
- Presisi tinggi, indikator resolusi tinggi
- Mudah dioperasikan dengan sepuluh kunci
- Visibilitas tinggi, layar FND besar (20mm)
- Kecepatan tinggi konversi A / D (200 kali / detik)
- Mudah pengoperasian & Berbagai fungsi
- Kalibrasi Sederhana (full india callibration)
- Berbagai spesifikasi kecepatan konversi bobot (Digital Filter)
- Built-in self test & fungsi self recovery
- Menyimpan data pada kegagalan daya tiba-tiba
- Berbagai koneksi printer (Serial, Centronics parallel) 4 kawat, 6 kabel load cell support (8 load cell connection)
- Kalibrasi Zero & span independen
- Tes perangkat keras sendiri | Antarmuka dasar: RS-232C, loop arus Masukan eksternal: 4 EA
Keluaran eksternal: 6 EA

FEATURES :
- Analog output : RS-442/RS-485 interface
- Measuring instrument tester
- Platform scale, Truck scale , Packer scale, Hopper scale , Limit scale, Checker scale

SPECIFICATIONS :
- Load cell excitation voltage DC 10V
- Load cell connection (350ohm) 8ea (4 or 6-wire)
- Zero adjustment range -0.6mV ~ +42.0mV
- Input sensitivity 0.45uV/D
- A/D conversion method Sigma-delta
- A/D internal resolution 1/520,000
- A/D display resolution 1/10,000
- A/D conversion speed 200 times/sec
- Display Unit Display Kg, g, ton
- Display Weight Display 6digits LED (Height: 25mm)
- Display Auxiliary Display
- Power AC 100~250V, 50/60Hz
- Operating Temp -10C~ 40C
- External input 4ea
- External output 6ea
- Product size (W x D x H/mm) 195 x 189 x 98
- Product weight (kg) Approx. 1.8kg
